Si PD-8000-TO8

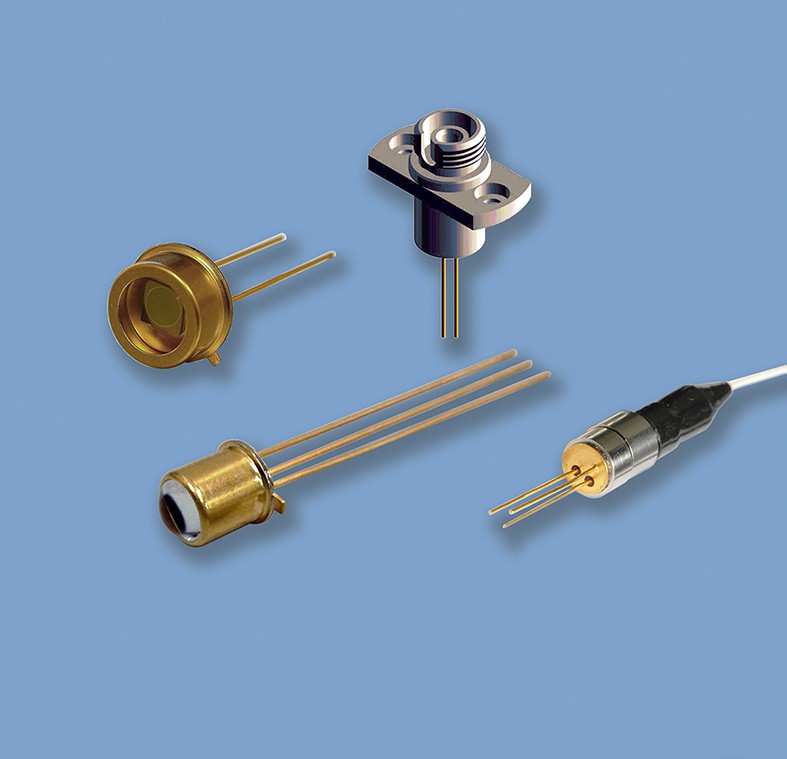

4in1 Photonics provides a wide selection of Si PIN photodiodes with various active areas and packages. These devices cover the spectral range from 400nm to 1100nm wavelengths and feature high responsivity, low dark current and low capacitance. The Si photodiodes are available in metal TO packages, fiber pigtail or receptacle packages to accommodate various applications. More custom sensitive areas, shapes or package styles could be provided on request.

Email

DP041108mT8 is a 8mm active diameter Si PIN photodiode housed in a TO8 metal package with flat window cap. It features high responsivity, low dark current and low capacitance for fast response time.


Features

ü  High sensitivity in visible to near infrared range

ü  Low dark current

ü  Low capacitance

ü  TO8 package


Specifications

Ts=25°C

Parameter

Symbol

Minimum

Typical

Maximum

Test Conditions

Active diameter

D

-

8mm

-

-

Spectral response range

λ

400nm

-

1100nm

-

Responsivity

Re

0.5A/W

-

-

λ=900nm, VR=15V

Rise Time

tr

-

25ns

-

RL=50, VR=15V

Dark current

ID

-

60nA

-

VR=15V

Capacitance

Ct

-

70pF

-

VR=15V, f=1MHz

Operating voltage

VR

0V

15V

-

-


Absolute Maximum Ratings

Parameter

Symbol

Minimum

Maximum

Test Conditions

Operating temperature

Top

-40 ºC

85ºC

No dew condensation

Storage temperature

Tstg

-40ºC

85ºC

No dew condensation

Input optical power

PIn


0.3W/cm2


Reverse voltage

VR

-

80V

-

Lead soldering time

Tsol

-

10sec.

260ºC


Spectrum response

Si PD Responsivity.jpg


Dimensions (mm)

TO-8 package

Si-PD-TO8 package.jpg

pdf-icon.pngDatasheet-Si PD
